Automated material handling and storage systems have become essential in today's laser cutting industry because they allow the manufacturer to fully exploit the machine's capabilities.  Through these solutions, you will optimize your production processes and minimize downtime, cost per part, and waste material, while increasing your productivity and, of course, your profits.

CraneMaster

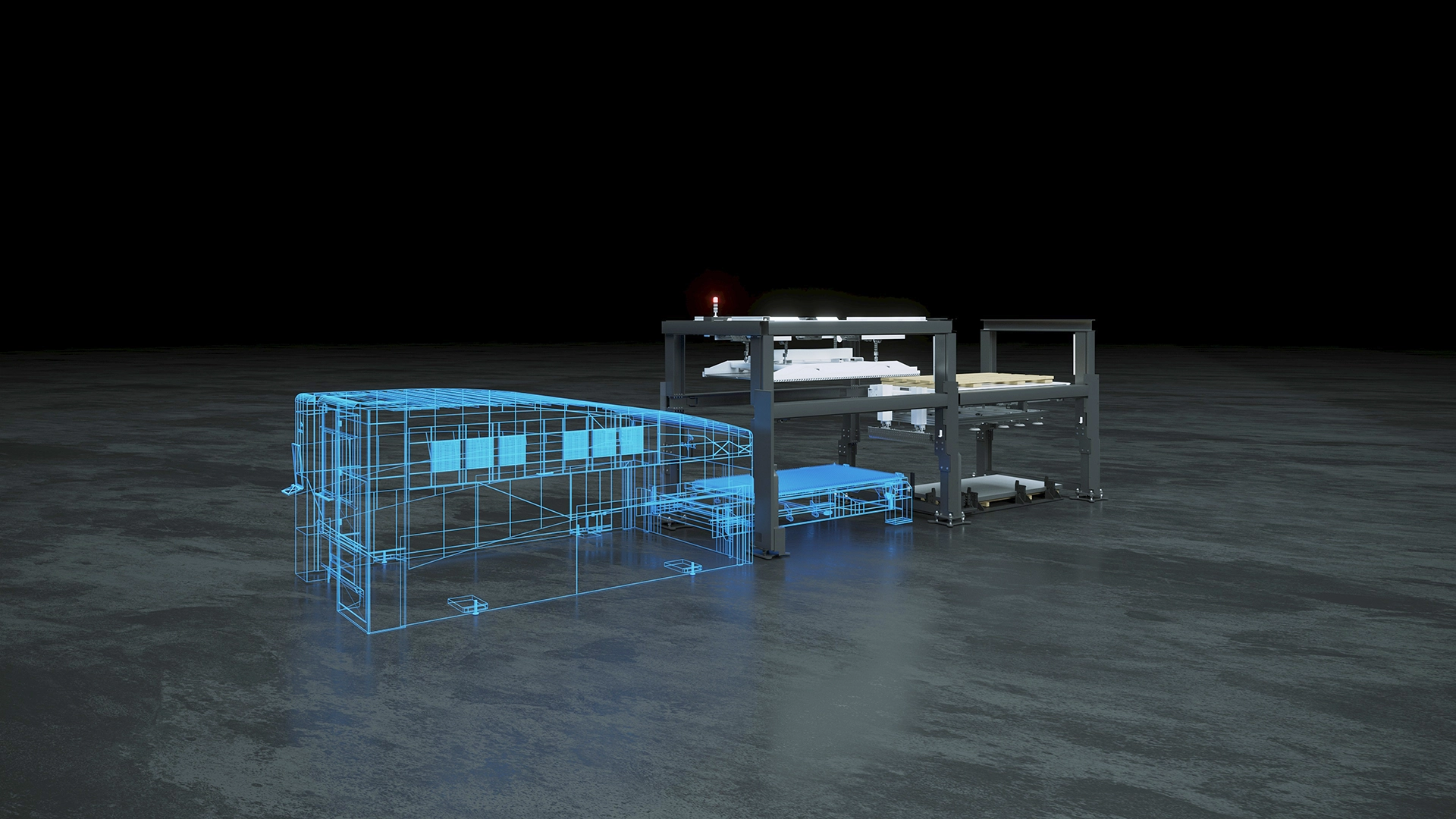

The CraneMaster is a loading/unloading system designed to simultaneously load new material and unload cut parts for smooth production and enhanced efficiency.

There are two available versions with air suction cups at either the top or bottom of the system. Thanks to its highly efficient cycle time, the CraneMaster contributes to the overall cost-effectiveness of the manufacturing process and is recommended for companies with medium to high volume production.

CraneMasterLinear

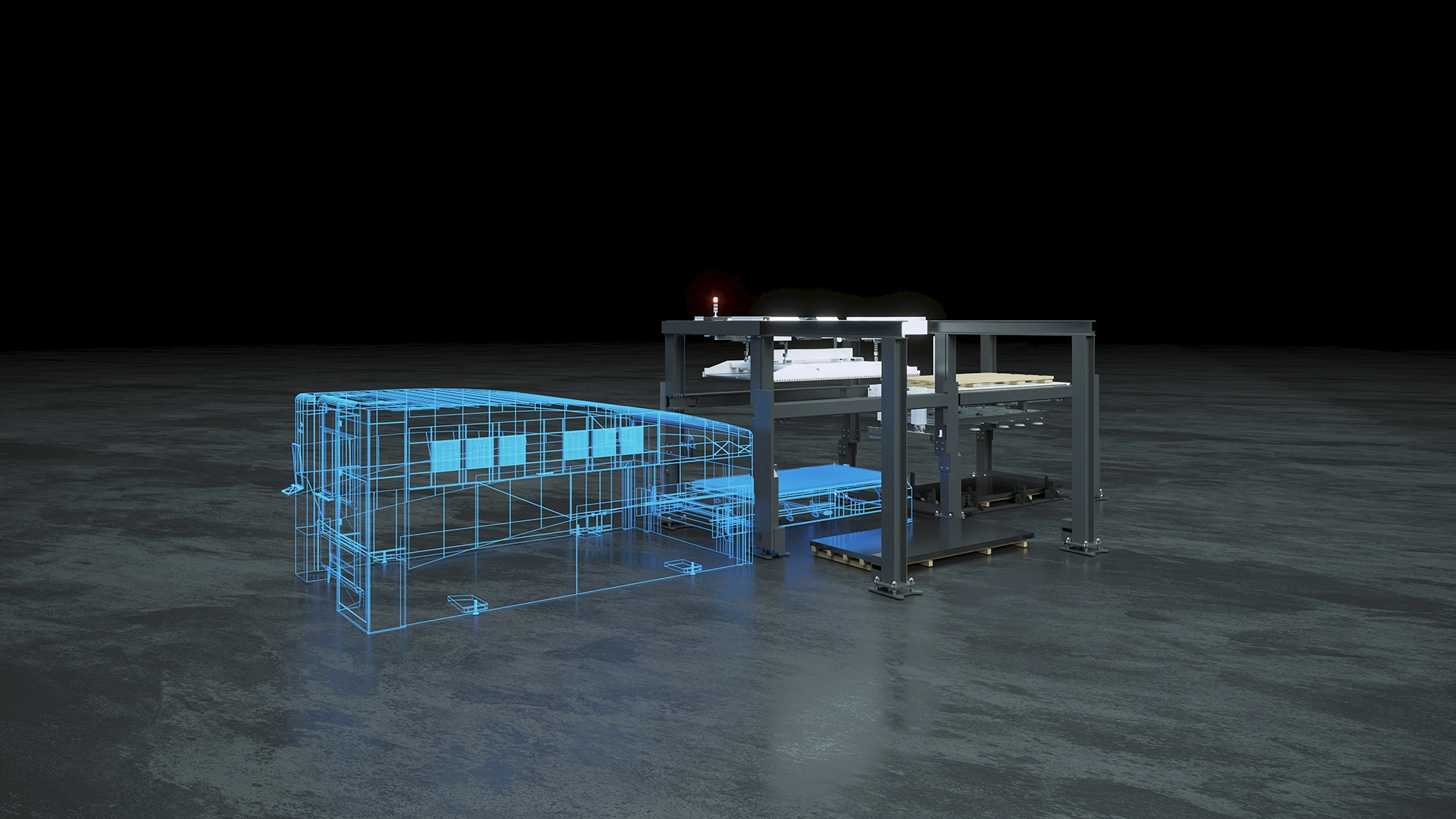

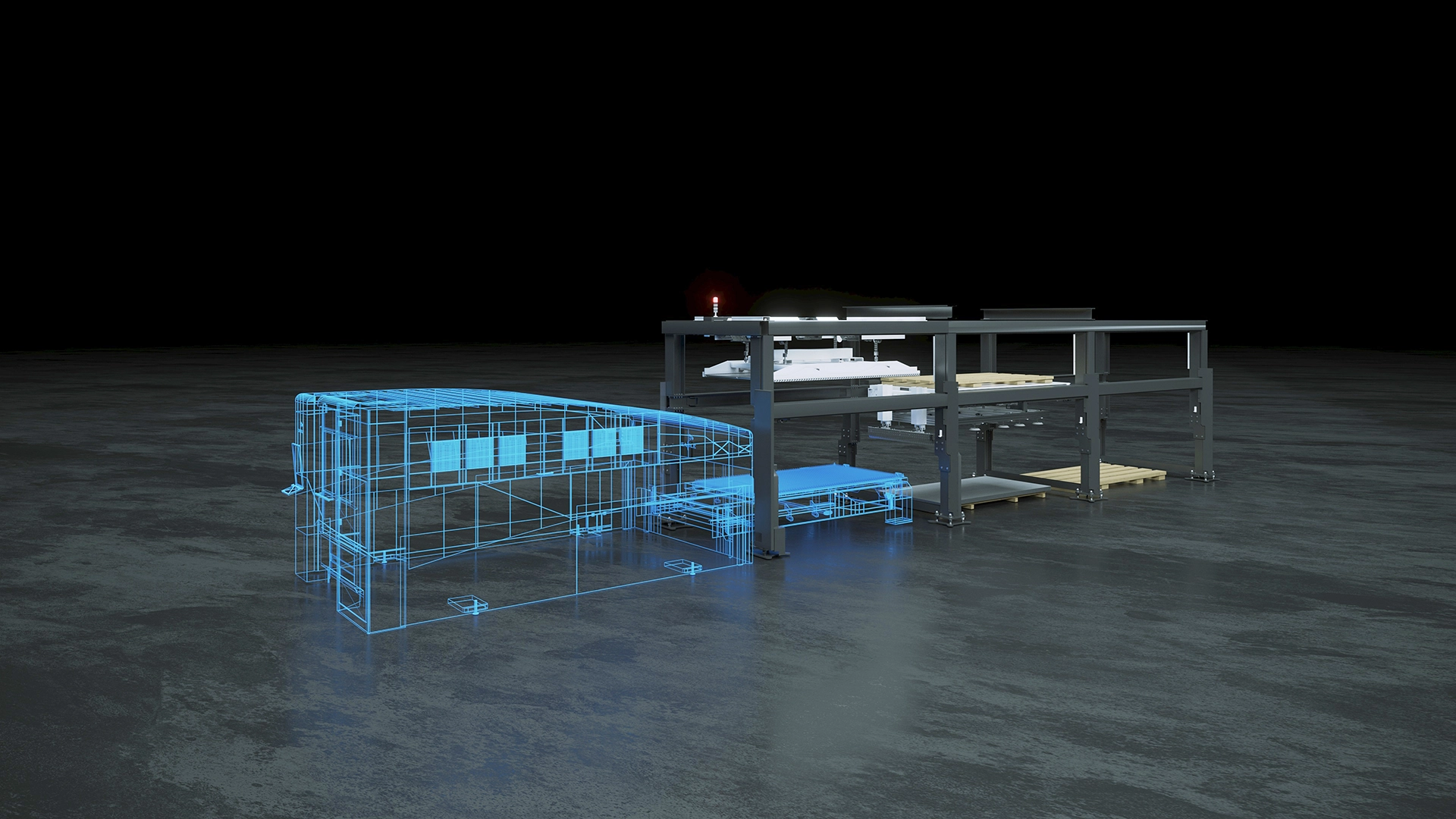

The CraneMasterLinear is the most efficient loading/unloading system. It loads new material while unloading cut parts for a smooth production and better machine efficiency, allowing for swift throughput times and providing maximum work flexibility.

The system features two movable pallets, which have an unlimited motion range on the vertical axis and can move to any location within the structure for unprecedented flexibility.

The CraneMasterLinear can be configured to lift and deposit metal sheets on either the left or right side of the laser shuttle table and is recommended for manufacturers with high production volumes.

CraneMasterStore

This loading and unloading system was designed for efficient cooperation between the material storage tower systems and the cutting machine.

It provides all the automatic functionalities expected from the CraneMaster system, such as efficient material loading from the warehouse onto the cutting machine and simultaneous unloading of cut parts into the warehouse or onto the unloading station.

The CraneMasterStore swiftly exchanges and stores material for fully automated logistics and is recommended for high-performance companies with medium to high production volumes.

CraneMasterStoreLinear

The CraneMasterStoreLinear is a loading/unloading system designed for swift cooperation between the material storage towers and the cutting machine.

It provides all the automatic functionalities expected from the CraneMaster system, such as efficient material loading from the warehouse onto the cutting machine and simultaneous unloading of cut parts into the warehouse or unloading station.

The system features two movable pallets, which have an unlimited motion range on the vertical axis and can move to any location within the structure. The unloading and loading stations can be located on either side of the machine, and the pallets can be set on the floor rather than on a special table.

All this makes the CraneMasterStoreLinear the most efficient and flexible of the CraneMaster systems, recommended for manufacturers with a high capacity and a medium to high production volumes.

eTower1

The eTower1 Is a single tower storage system equipped with a loading/unloading station and universal shelves that can be used for raw material as well as for cut parts and remnants. It consists of a transport column equipped with a moving lift that transports the palettes between the storage shelves and the loading/unloading station.

The automated lift picks up a pallet containing raw metal sheets and takes them to the CraneMasterStore. The CraneMaster then places them onto the machine’s pallet changer and simultaneously removes the cut parts to be stored.

The standard eTower1 system comes with 10, 15, or 20 shelves but can be customized according to your needs. In addition, it features a control panel that allows you to manage material storage and retrieval throughout your facility.

The CraneMaster and eTower1 work seamlessly to optimize process logistics and material preparation and guarantee high storage density. Together, these automated systems make 24/7 unsupervised production possible helping you achieve the highest productivity.

eTower2

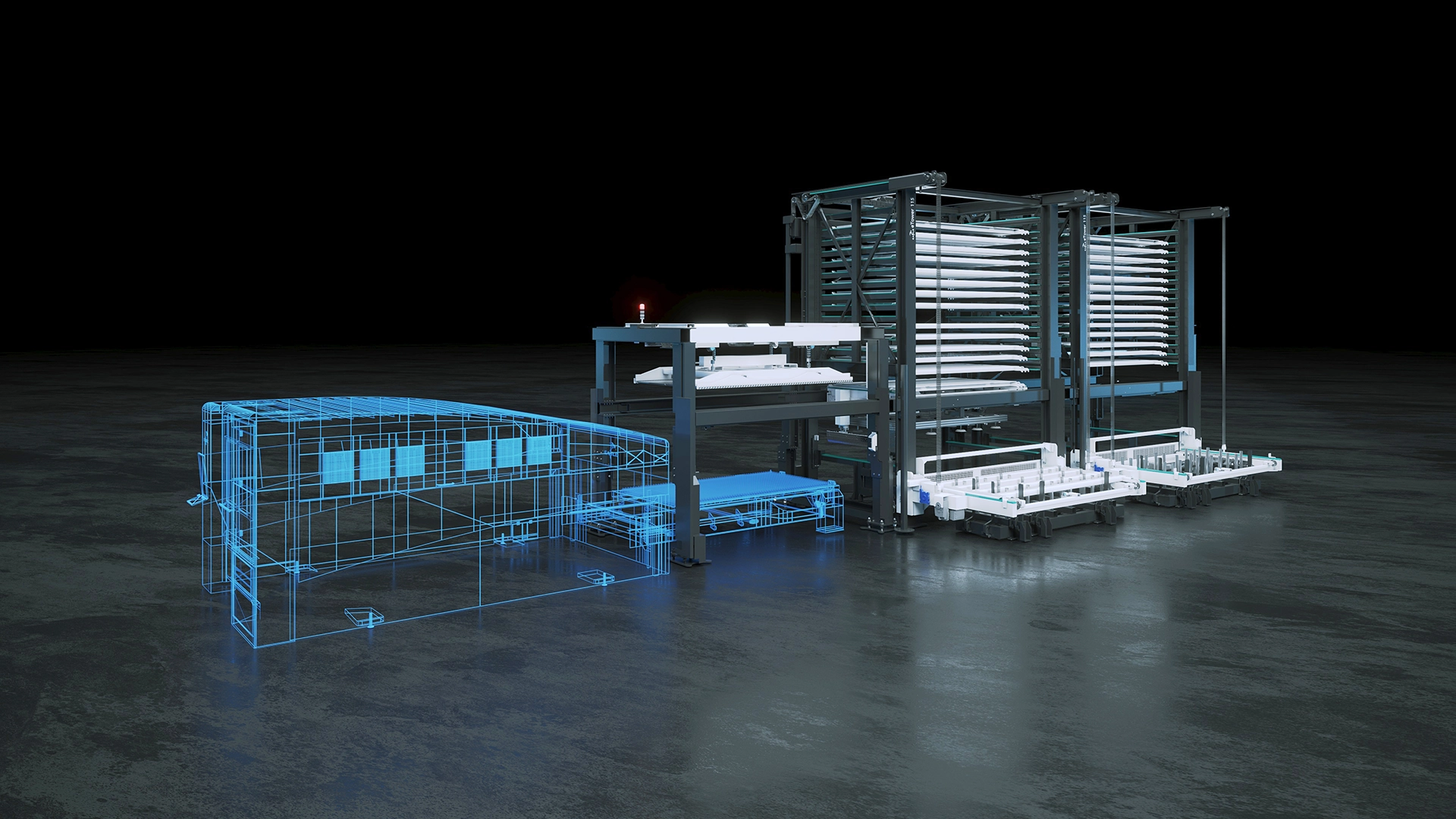

The eTower 2 is a two-tower warehouse system equipped with a loading/unloading station and universal shelves that can be used for raw material as well as for cut parts and remnants It consists of two transport columns equipped with moving lifts that transport the palettes between the storage shelves and the loading/unloading station.

An automated lift picks up a pallet containing raw metal sheets and takes them to the CraneMasterStore. The CraneMaster then places them onto the machine’s pallet changer and simultaneously removes the cut parts to be stored.

The standard eTower2 system comes with 26, 36, or 46 shelves but can be customized according to your needs. In addition, it features a control panel that allows you to manage material storage and retrieval throughout your facility.

The CraneMaster and eTower2 work seamlessly to optimize process logistics and material preparation and guarantee high storage density. Together, these automated systems make 24/7 unsupervised production possible helping you achieve the highest productivity.

eLoader

The eLoader is a semi-automatic jib crane that makes sheet loading easier. It consists of a manually operated crane, an electric hoist, and a suspended vacuum transport pallet and can be screwed to the foundation next to the machine pallet. This affordable solution is easy to operate, they increase worker productivity and safety and help streamline sheet loading onto the pallet.

LoadingUnit

The LoadingUnit is an automatic loading system that's fully automated and integrated into the machine. It consists of a rotary arm equipped with individually controlled high-pressure suction cups.

This system selects individual metal sheets by measuring their thickness to ensure that the material corresponds with the cutting program before loading. When the operator gives the signal, the unit automatically loads the metal sheet from an external pallet and places it onto the machine table for increased throughput.

A simple solution that significantly optimizes the material handling process while reducing operation time and production costs, the LoadingUnit is recommended for medium-capacity production companies that manufacture individual items or small batches.

Automation available for EAGLE laser cutting machines:

eLoader

Jib crane that makes sheet loading considerably easier. A manually operated crane, an electric hoist and a vacuum transport pallet suspended from the cable. This unit is screwed to the foundation next to the pallet of the machine. This is an affordable solution which considerably streamlines the loading of sheets onto the pallet of the laser cutting machine.

Read more

LoadingUnit
LoadingUnit automation

The LoadingUnit is fully automated and integrated into the machine. It consists of a rotating frame with vacuum suction cups. When the operator gives the signal, the machine loads a sheet of metal from an external pallet onto the machine table. The unit is recommended for production and service companies which have medium capacity and manufacture individual items or small batches.

Read more

CraneMaster
CraneMaster automation

This loading and unloading system is the most efficient (extremely fast throughput times) way of loading and unloading material and cut parts. The new material is loaded and unloaded simultaneously, which provides smooth production and better work efficiency. Two versions of the CM are available, with suction cups on either the top or bottom of the system. The system is recommended for production and service companies with high capacity and medium to high volume production.

Read more

CraneMasterLinear
CraneMasterLinear automation

This loading and unloading system is the most efficient (extremely fast throughput times) way of loading and unloading material and cut parts, and providing maximum work flexibility. The new material is loaded and unloaded simultaneously, which provides smooth production and better machine efficiency. The system has two movable pallets. Both pallets can move to any location in the system. Both pallets have an unlimited movement range in the vertical axis of the system, giving the machine unprecedented flexibility. The system is recommended for production and service companies with a high capacity and a low, medium or high production volume.

Read more

CraneMasterStore

This loading and unloading system provides an efficient connection between the machine and the storage system. It makes the automation of storage, logistics and material loading and unloading of cut parts and the openwork even more efficient. It provides all of the automatic functionality that is expected from the CraneMaster system, i.e. efficient loading of material from the warehouse onto the laser cutting machine pallet and the simultaneous unloading of cut parts into the warehouse or onto the unloading station. The system is recommended for production and service companies with high performance and a medium or high production volume.

CraneMasterStoreLinear

This loading and unloading system is the most efficient (extremely fast throughput times) way of loading and unloading material and cut parts, and providing maximum work flexibility. The new material is loaded and unloaded simultaneously, which makes production smooth and significantly improves the efficiency of the machine. The system has two movable pallets. Both pallets can move to any location in the system. Both pallets have an unlimited movement range in the vertical axis of the system: which gives the device unprecedented flexibility. The system is recommended for production and service companies with a high capacity and a low, medium or high production volume.

Storages

This is an automatic sheet metal storage system which works together with the loading and unloading system of the CraneMasterStore or CraneMasterStoreLinear laser cutting machine. The material storage system consists of a storage tower, which is also a transport column with a moving lift. The lift is used to move the palettes between the storage tower and the loading and unloading location.

Read more
